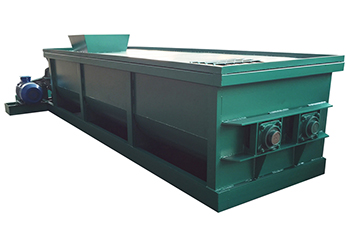

Double-Shaft Mixer

The barrel of the double-shaft mixer is equipped with paddles that rotate in opposite directions.

Model:: 80#/100#/120#/150#
Details
Parameters
Related Products
Inquiry
Details

The barrel of the double-shaft mixer is equipped with paddles that rotate in opposite directions. The paddles form a certain angle to stir the materials in the axial and radial directions, so that the materials can be mixed quickly and evenly. It is mainly used in the process of pre-adding water into balls. When the quantitative raw meal powder flows into the mixing tank from the feeding port, it is sprayed on the raw meal powder by several water atomization with a certain pressure, and the shaft with a qualitative length passes through the stirring blade. After stirring evenly, a ball core with consistent water content is formed, and it is transported to the pre-watered ball tray. The whole stirring is divided into three areas: atomization area, stirring area and unloading area. The hard gold cutter head is welded on the mixing blade, which has good wear resistance; it is suitable for mixing more than two kinds of fertilizers, additive premixes, compound feed, concentrated feed, and additive premixed feed.



Parameters
Model Bearing Spec. Power(Kw) Dimension(mm)
80# UCP215 11 4000x1300x800
100# UCFU220 22 5500x1800x1100
120# UCFU217 22 5200x1900x1300
150# UCFU220 30 5700x2300x1400
